Geomorph Tabs

The Geomorph Tab command draws fold-over plug-in tabs of the type used by the CCD geomorph pieces. To use this command:

1. Click on the Geomorph Tab icon $image\gtab.gif$ .

2. Click within your drawing at the desired starting point for the geomorph tab to be added, or click on the edge you wish to add geomorph tabs along.

If you select a first point, rather than an edge, the command line will change to Next point:, and you must provide a second point in order to continue drawing the geomorph tab.

3. Move the mouse until the preview outlines of the tabs to be drawn appear orientated correctly.

4. Left-click to complete the command.

Geomorph Tabs Tips

The Geomorph Tab command draws plug-in tabs for use with 1’ thick walls. Therefore, you should draw all walls intended for use with geomorph tabs at 1’ thickness.

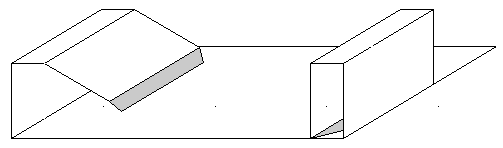

Geomorph tabs are assembled such that they fold over themselves, into the base section they are attached to, forming a vertical plug section.

$image\GeoTabAss.gif$

Text Equivalent: GTAB
